Zynq MPSoC Semiconductor Precision Temperature Control Solution | FPGA Hardware Closed-Loop Temperature Control Achieves Microsecond Temperature Stability and Power Management

Tags: Zynq MPSoC, ARM+FPGA, Semiconductor Equipment, Precision Temperature Control, PID Hardware Closed-Loop, Power Management, Temperature Drift, Domestic Temperature Control

Abstract: Semiconductor die bonding, wire bonding, wafer baking, and chip curing processes demand extremely stringent temperature stability. Temperature drift, overshoot, response lag, and power fluctuations are core factors leading to poor chip curing, bonding failure, and wafer thermal deformation. Traditional pure ARM software PID temperature control solutions suffer from long cycles, filtering lag, and low adjustment precision, making millidegree-level constant temperature control impossible. Discrete temperature controller + industrial PC solutions have high communication latency, poor联动性 (linkage), and uncontrollable power consumption, making them difficult to match the temperature control standards of semiconductor precision processes. This article, based on the Zynq UltraScale+ MPSoC heterogeneous architecture, builds an integrated precision temperature control system featuring FPGA hardware closed-loop temperature control, R5F real-time parameter scheduling, and A53 process data traceability. It implements AD sampling, digital filtering, PID calculation, PWM modulation, and dynamic power adjustment entirely in PL hardware, achieving microsecond-level temperature control response and ultra-high constant temperature accuracy of ±0.1℃. By quantitatively comparing the stability, response speed, and anti-interference capabilities of traditional ARM and discrete instrument temperature control solutions, this article details the semiconductor precision temperature control architecture design, hardware PID implementation logic, and mass production power management solutions, which can be directly used for domestic development and iteration of semiconductor thermal process equipment. After reading this article, you will master: core process requirements for semiconductor precision temperature control, principles of FPGA hardware PID closed-loop implementation, techniques for temperature control and motion bus linkage, shortcomings of traditional temperature control architectures, and solutions for mass production temperature drift and power fluctuations.

I. Industry Background: Core Pain Points of Semiconductor Precision Temperature Control

Semiconductor packaging, curing, and testing equipment belong to ultra-high precision thermal process scenarios. Processes such as chip underfill, adhesive curing, wafer preheating, bonding constant temperature, and probe station temperature control directly determine chip bonding strength, yield, and reliability. Ordinary industrial temperature control accuracy is only ±1~2℃, while high-end semiconductor processes have extremely stringent requirements: constant temperature control accuracy of ±0.1℃, temperature control response latency ≤20μs, no overshoot in steady state, no temperature drift under load fluctuations, and dynamically controllable overall machine power consumption.

Compared to general industrial temperature control scenarios, semiconductor precision thermal processes face three rigid technical bottlenecks in mass production, which are also core challenges that traditional temperature control architectures cannot overcome:

Rigid demand for ultra-high constant temperature accuracy: Semiconductor adhesive curing and wafer thermal processing are highly sensitive to temperature. Temperature fluctuations above 0.5℃ can lead to uneven curing, residual internal stress, and chip warpage, causing subsequent delamination and cracking failure.
Rigid demand for ultra-fast response without overshoot: Process start/stop and workpiece entry/exit cause instantaneous thermal load fluctuations. Traditional temperature control, with its response lag, is prone to temperature collapse and overshoot peaks, directly leading to batch process defects.
Rigid demand for strong temperature control-motion linkage + controllable power consumption: Thermal processes require precise linkage with motion alignment and bus cycles. Additionally, multiple heating modules in the equipment operate in parallel, resulting in high static power consumption and large dynamic power fluctuations, which can easily lead to overheat protection and unstable power supply during long-term mass production.

Currently, the two mainstream traditional temperature control solutions in the industry both have architectural shortcomings and cannot meet the mass production requirements of high-end semiconductor precision thermal processes:

1.1 Core Shortcomings of Pure ARM Software PID Temperature Control Solutions (Mainstream in Mid-to-Low-End Equipment)

Domestic mid-to-low-end semiconductor thermal process equipment often uses an ARM main controller with an external AD sampling chip, implementing PID calculation and PWM output through software loops. All temperature control logic relies on CPU software iteration, leading to four inherent defects:

Large temperature control cycle, severe response lag: Software PID calculation cycles are generally in milliseconds, leading to delayed temperature feedback and adjustment. Temperature recovery is slow after load fluctuations, making it impossible to suppress small temperature drifts.
Poor steady-state accuracy, frequent overshoot oscillations: Simple software filtering algorithms and delayed parameter updates easily cause small oscillations during the constant temperature phase, making ±0.1℃ high-precision constant temperature impossible.
Multi-channel temperature control computational coupling: When multiple heating modules operate simultaneously, software PID loop computations double, occupying resources for motion control and bus scheduling, leading to mutual interference between temperature control and real-time equipment operations.
Weak anti-interference capability: Electromagnetic interference and power supply fluctuations in the workshop can easily cause AD sampling jitter. Software cannot quickly filter out noise, leading to temperature control output fluctuations and temperature jumps.

1.2 Core Shortcomings of Discrete Temperature Controller + X86 Industrial PC Solutions (Traditional Solution for High-End Equipment)

Imported high-end semiconductor equipment commonly adopts a split architecture of independent temperature controllers + X86 industrial PCs. Although it can achieve basic high-precision temperature control, it has prominent drawbacks for industrial implementation, severely restricting domestic substitution and equipment integration upgrades:

High communication latency, poor linkage: The industrial PC sends temperature control commands via serial port/network port, introducing millisecond-level communication latency. This prevents precise timing linkage with motion interpolation and EtherCAT bus timing, resulting in poor thermal process synchronization.
Core algorithms are closed-source, cannot be customized: Commercial temperature controller PID algorithms, filtering logic, and control strategies are completely proprietary, making it impossible to optimize them specifically for semiconductor thermal inertia and load characteristics.
Bulky equipment, high cost: Multi-channel temperature control requires stacking multiple instruments, leading to complex wiring, large equipment volume, high unit price for imported high-precision temperature controllers, and long supply cycles.
Uncontrollable power consumption, poor long-term stability: Split modules lack unified power scheduling. Peak power consumption is excessively high when multiple modules operate simultaneously, easily causing power supply voltage drops and equipment overheating, leading to many long-term mass production risks.

II. Zynq MPSoC Heterogeneous Architecture: The Optimal Solution for Semiconductor Precision Temperature Control

The Zynq UltraScale+ MPSoC, leveraging its PL FPGA hardware parallel processing + PS multi-core ARM (A53+R5F) single-chip heterogeneous integration architecture, completely overcomes the core bottlenecks of traditional software temperature control lag and discrete temperature control's poor linkage. By implementing AD sampling, digital filtering, incremental PID closed-loop control, high-precision PWM modulation, and dynamic power management entirely in PL hardware, it achieves full hardware acceleration. The R5F hard core handles real-time temperature control parameter scheduling, process timing linkage, and anomaly protection, while the A53 core manages temperature control recipes, data traceability, and power consumption statistics. This results in an integrated system for "ultra-fast hardware temperature control closed-loop + hard real-time process linkage + intelligent power management," making it the optimal technical route for domestic semiconductor precision thermal process equipment today.

2.1 Dedicated Software and Hardware Layered Division of Labor for Precision Temperature Control System

1. PL (FPGA Programmable Logic) Side — Core of Hardware Temperature Control Closed-Loop

The PL side operates completely independently of CPU intervention, building independent hardware temperature control IP cores. It concurrently performs multi-channel AD temperature sampling, multi-level digital filtering, hardware PID calculation, high-resolution PWM output, and real-time power acquisition and adjustment. All temperature control closed-loop calculations are completed in microseconds, without software loop delays or scheduling jitter, fundamentally solving temperature drift, response lag, and steady-state oscillation problems from the hardware level. Simultaneously, hardware ensures synchronously sourced synchronization of temperature control with motion and bus clocks, guaranteeing precise linkage between thermal processes and equipment actions.

2. R5F Real-Time Core — Core of Temperature Control Scheduling and Linkage

The independent Cortex-R5F hard core runs bare-metal, without relying on the Linux system. It is responsible for temperature control process timing scheduling, dynamic adaptive PID parameter adjustment, multi-channel temperature control balancing, temperature control-motion bus linkage, over-temperature/out-of-tolerance hardware protection, and peak power suppression. It precisely locks temperature control cycles with equipment process timing, eliminating system scheduling interference and ensuring temperature stability and controllable power consumption under all operating conditions.

3. A53 Application Core — Core of Temperature Control Processes and Traceability

The multi-core Cortex-A53 runs the Linux system, responsible for storing multiple sets of temperature control process recipes, calibrating temperature curves, analyzing power consumption data, archiving fault logs, PC-based visualization debugging, and correlating process yield statistics. It supports one-click switching of thermal process parameters for multiple chip categories, enabling full-process traceability of temperature control data, and adapting to mass production iteration requirements.

2.2 Core Differentiated Advantages: MPSoC VS Pure ARM / Discrete Instruments

A structured comparison of the core differences among the three temperature control architectures precisely highlights the irreplaceable nature of Zynq MPSoC in semiconductor precision temperature control scenarios:

Outperforms Pure ARM | Hardware closed-loop completely eliminates temperature control lag: Pure ARM software has millisecond-level PID iteration and noticeable steady-state oscillation; MPSoC PL hardware performs microsecond-level closed-loop calculations, increasing response speed by a hundredfold, with no temperature drift or overshoot in steady state, easily achieving ±0.1℃ high-precision constant temperature.
Outperforms Discrete Instruments | Single-chip synchronously sourced precise timing linkage: Eliminates the drawbacks of communication latency in discrete instruments. Temperature control, motion, and bus timing are synchronously sourced on-chip, ensuring seamless connection between thermal processes and equipment actions, with process consistency far exceeding traditional split solutions.
Exclusive Dynamic Power Management | Maximized Mass Production Stability: Hardware real-time collects power consumption from each channel, dynamically balances multi-channel heating power, suppresses peak power consumption, avoids power supply voltage drops and equipment overheating, solving the problem of uncontrolled power consumption in traditional solutions.
Long-Term Mass Production Stability | Adapts to Semiconductor Ten-Year Mass Production: Industrial-grade wide temperature operation, ultra-long supply for 15 years, fully autonomous and controllable temperature control algorithms, allowing deep customization of thermal process strategies, no reliance on external modules, perfectly suited for domestic substitution and long-term mass production.

III. Precision Temperature Control and Power Management System Solution and Hardware Resource Configuration

3.1 Core Hardware Resource List (Directly Reusable in Engineering)

This solution is suitable for a full range of semiconductor adhesive curing, wafer preheating, bonding constant temperature, and probe testing thermal process equipment. The hardware configuration is standardized and can be directly implemented for mass production:

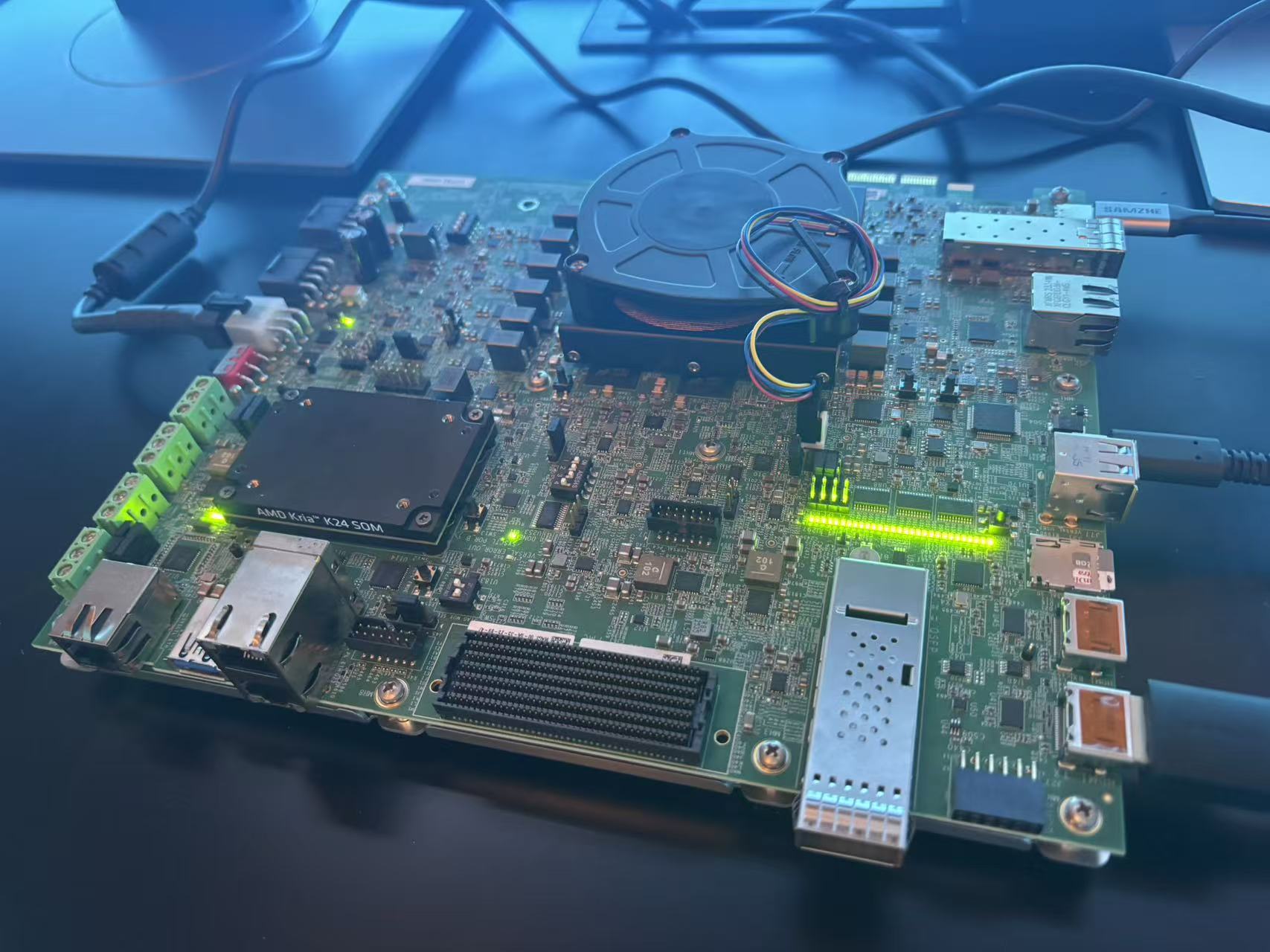

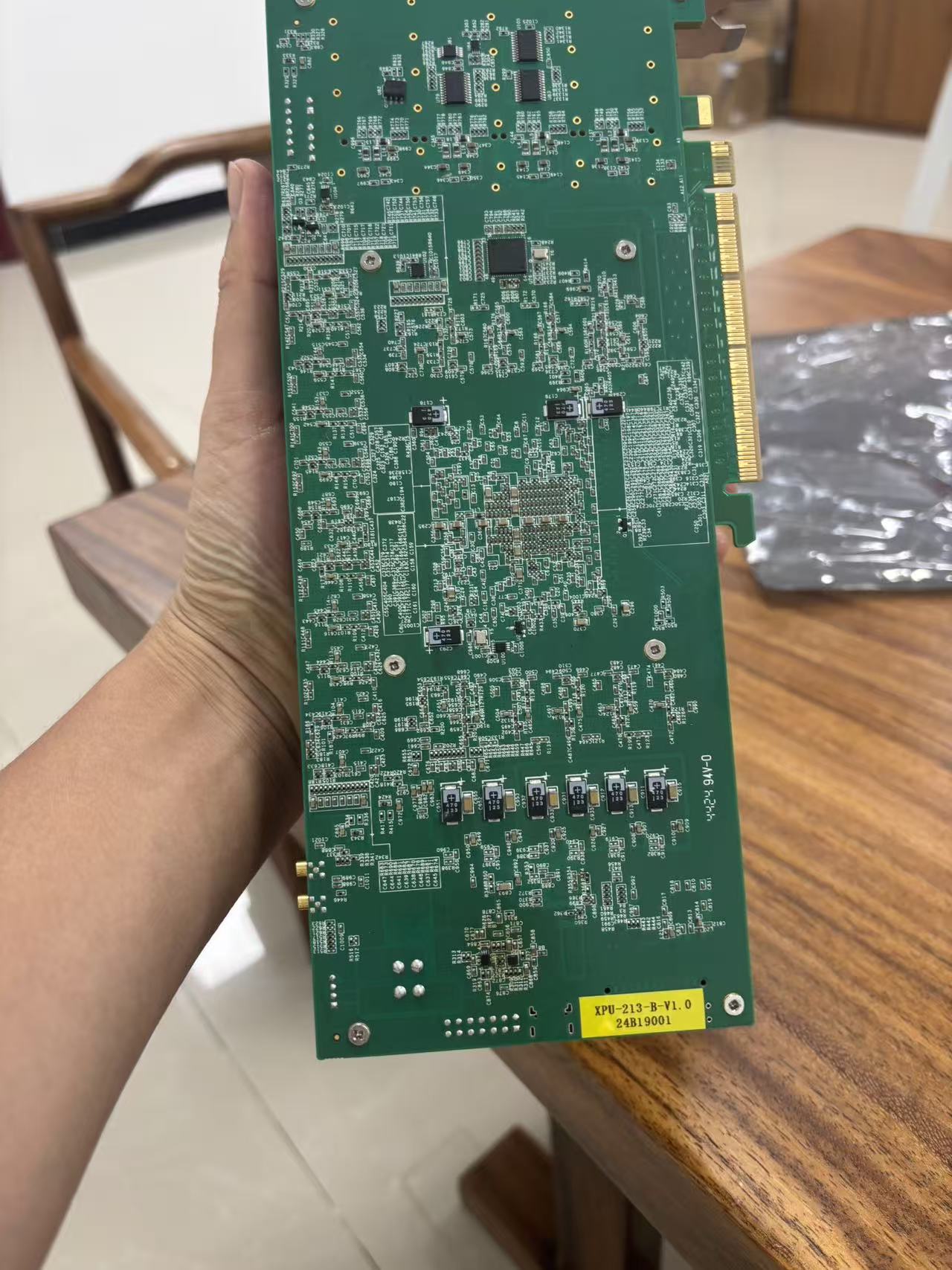

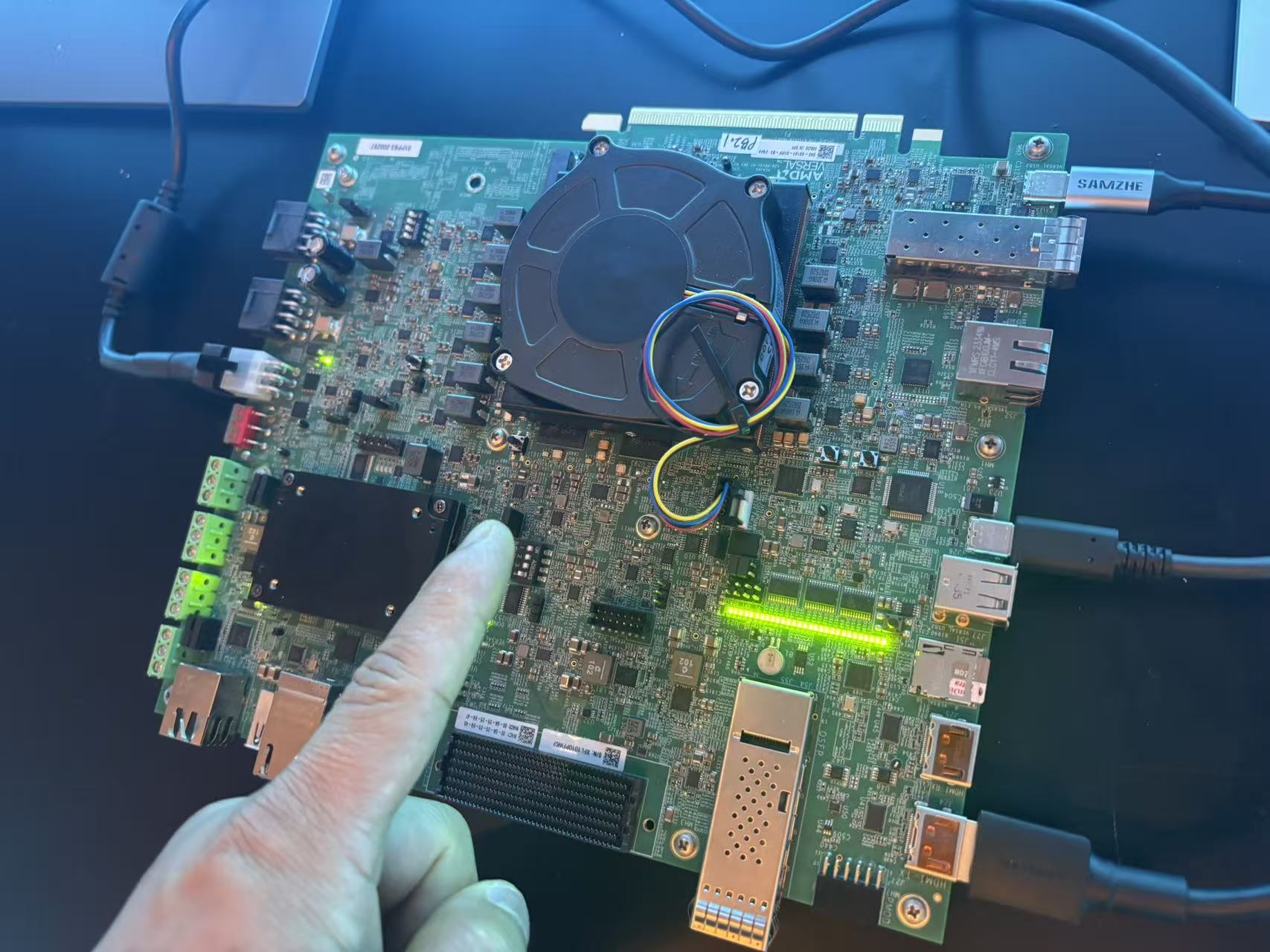

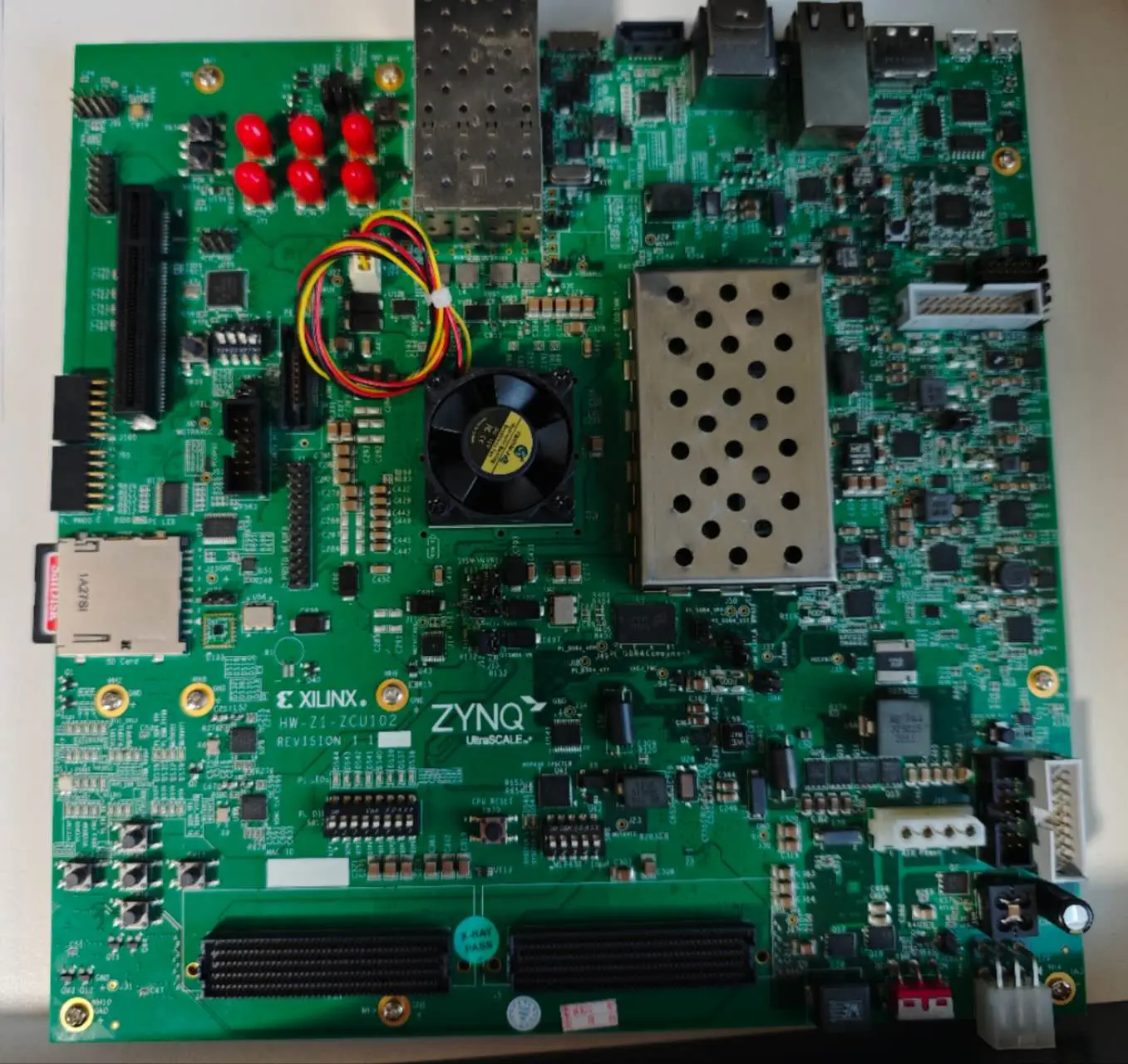

Main Control Chip: Xilinx Zynq UltraScale+ MPSoC (ZU3/ZU4) industrial-grade wide temperature models
Temperature Control Channels: Supports up to 8 independent hardware closed-loop temperature control channels, operating in parallel without mutual interference
Core Accuracy: Steady-state temperature control accuracy ±0.1℃, temperature sampling resolution 0.01℃
Response Speed: Hardware PID closed-loop cycle ≤20μs, rapid recovery from load fluctuations without collapse
Power Management: Real-time power acquisition, dynamic power balancing, peak suppression
Operating Architecture: PL hardware temperature control closed-loop + R5F real-time linkage scheduling + A53 process traceability management

3.2 Overall Three-Layer Heterogeneous System Architecture

This solution adopts a three-layer heterogeneous architecture: "PL Hardware Temperature Control High-Speed Closed-Loop Layer + R5F Real-Time Linkage Layer + A53 Intelligent Process Layer," covering the entire process of temperature acquisition, closed-loop adjustment, timing linkage, power management, and process traceability:

First Layer: PL Hardware Temperature Control High-Speed Closed-Loop Layer

The FPGA builds multiple independent hardware temperature control IP cores, concurrently performing NTC/PT100 temperature AD sampling, multi-level noise reduction with mean filtering + median filtering, precise incremental PID calculation, and 16-bit high-resolution PWM power adjustment. The entire process is executed in a hardware pipeline, without CPU intervention, completing a closed-loop adjustment in microseconds, completely eliminating software cycle lag. Simultaneously, hardware real-time collects power consumption from each heating module, dynamically adjusts output power, performs peak shaving and valley filling, and stabilizes the overall machine power supply. Hardware includes built-in over-temperature, out-of-tolerance, and wire-break detection logic, triggering protection in nanoseconds to prevent process scrap and equipment failures.

Second Layer: R5F Real-Time Process Linkage Layer

The R5F hard core, based on semiconductor thermal process logic, implements segmented scheduling of temperature control curves, adaptive PID parameter switching during heating/constant temperature/cooling phases, and multi-channel power balancing control. It precisely interfaces with EtherCAT bus and motion control timing, achieving a full-process timing closed-loop of "motion alignment complete - temperature control start - constant temperature curing - process end." It real-time monitors temperature fluctuations and power anomalies, dynamically compensating adjustment parameters to ensure constant temperature under load fluctuations and environmental interference.

Third Layer: A53 Intelligent Process Business Layer

The A53 core is responsible for global process management, supporting storage of multiple categories of thermal process recipes, custom temperature curves, one-click batch parameter deployment, real-time storage of temperature control data, power consumption statistical analysis, and PC-based visualization monitoring. It automatically archives temperature data for each batch, enabling traceability of defective products and iterative optimization of process parameters, enhancing equipment intelligence and mass production traceability.

3.3 Core Key Technology Implementation Highlights

1. FPGA Hardware Incremental PID Closed-Loop Temperature Control Technology

Abandoning traditional software positional PID, hardware implements an incremental PID algorithm, which avoids integral saturation and offers good adjustment linearity. Coupled with multi-level hardware filtering, it completely eliminates sampling jitter and steady-state oscillation. Microsecond-level closed-loop response ensures rapid recovery to constant temperature after sudden load changes, stably achieving ultra-high temperature control accuracy of ±0.1℃, meeting semiconductor precision thermal process requirements.

2. Multi-Channel Dynamic Power Balancing Management Technology

For scenarios where multiple heating modules operate in parallel, hardware real-time collects the output power of each channel. The R5F dynamically allocates output duty cycles in real time, suppressing instantaneous peak power consumption, balancing the overall machine load, and preventing power supply voltage drops and module overheating. This solves the problem of power stacking and unstable operation in traditional multi-channel temperature control.

3. Temperature Control-Motion-Bus Hardware Synchronously Sourced Linkage Technology

Temperature control adjustment timing, motion interpolation timing, and EtherCAT bus timing share a PL global synchronously sourced clock. These three timings are precisely aligned, achieving seamless connection between motion alignment, constant temperature curing, and process flow. This eliminates process unevenness and chaotic cycles caused by timing misalignment.

4. Hierarchical Hardware Safety Protection Mechanism

The PL side hardware implements multi-level latch protection for over-temperature limit, out-of-tolerance, sensor disconnection, and abnormal power, instantly cutting off heating output without software judgment. The R5F supplements this with fault warning and process shutdown logic, providing dual-layer protection to prevent high-temperature damage to workpieces and equipment failures, ensuring safe and stable mass production.

3.4 Key Points to Avoid Pitfalls in Engineering Development (Practical Insights)

Based on experience from implementing multiple sets of semiconductor thermal process equipment, we have summarized 4 high-frequency engineering pitfalls and optimal solutions to avoid development rework and on-site temperature control debugging challenges:

Pitfall 1: Small temperature oscillations during constant temperature phase: Large software PID calculation cycles and insufficient filtering lead to steady-state fluctuations. Solution: High-frequency hardware PID closed-loop + multi-level digital filtering, refining adjustment step size, eliminating steady-state oscillations, and locking in ±0.1℃ constant temperature accuracy.
Pitfall 2: Temperature collapse caused by workpiece entry/exit: Sudden thermal load changes, traditional temperature control lag, and significant temperature drops. Solution: R5F predicts process cycles, dynamically adjusts PID parameters and output power in advance, achieving no collapse or overshoot during sudden load changes.
Pitfall 3: Excessively high peak power consumption for multi-channel temperature control: Multiple channels heating simultaneously, instantaneous power is too large, causing unstable power supply. Solution: Hardware power monitoring + dynamic time-sharing power control, peak shaving and valley filling, balancing overall machine power load
